Astro City Lock Latches

The locks and latches for the Astro City often cause confusion as to whether the barrels are longer or why the standard latches cannot fit in certain places.

The standard Sega Locks for the Astro City are the Sega 5380 locks, with a different key and barrel used for the coin door.

The latches are as follows:

Coin Door latch (Left)
Control Panel Spacer (Left centre)
Main and Coin Mech Door latch (Right Centre)
Control Panel Latch (Right)

Only two of these parts have part numbers marked on them.

The main door latch is DP-1167
The control panel latch is QN-1311

Sega Candy Cab locks

I thought I'd put a bit up about the locks Sega use on their candy cabinets as it's not always clear what you might need.

What you will usually find on cabinets from arcades is that they will have a standard set of locks for all doors except the cash box. This is done to make life easier, with the different lock on cash boxes because it's not difficult to get your hands on a standard key.

Here's an image of the 3 most commonly used Sega keys:

At the top you have the A001 key, below that the 5380, and at the bottom the 5575.

Here's a shot of the keys on their own. From left to right - 5575, A001 and 5380.

The A001 key is the newest of the standard locks here, and is commonly found on the Dino King style mini cabs.

The 5380 lock is the oldest of the 3 shown. It is used as standard on the Aero, Astro, and New Astro City cabinets.

The 5575 is found on cabinets from the mid-late 90's into the early 2000's. It's Standard on the Blast City and the Naomi and it's variations.

I've found the best source of these keys and locks to be on Yahoo Auctions Japan. They do show up on Ebay occasionally, but tend to be expensive. The going rate in Europe for these keys seems to around £15-20 each, with the locks going for £3-4 each, and the latches around £1 or so. From Japan you tend to be able to get a set of 5 locks and latches, with a key for around £20-£30. The exception being the A001 where the key alone sells for around that much. I'm not sure why there is such high demand there for those keys, but if someone would like to let me know I'd be grateful.

Arcade room, still work in progress

May was a busy month for me, I moved into my new house at the very end of April and have been trying to get the house organised. I'm finally getting there, and the dining room, also known as Arcade room is almost complete. I got another Astro City delivered the other day, and just need to add a new fluorescent tube and starter to it. Finally I need to put up a few bits of art I have and tidy up the cabling and then it's done.

Here's a panoramic shot of it, which includes all 5 cabinets and my work area/test bench.

The latest Astro City I acquired came with a nice 2l12b panel on it, but since I decided it was going to be set in 'tate' mode, I fitted a 2l8b panel I had spare which is more suited to vertical shooters.

New games room coming soon...

The time has finally come to once again move house. In the new house I'll have enough space to put all of my arcade cabinets, and a workbench for testing and repairs. There will also be space for what will be my latest arrival, another Astro City cabinet to match my current one. This will mean the arcade room will have the following cabinets:

2x Sega Astro City
1 x Sega Blast City
1 x Weche OK Baby
1 x Electrocoin Neo Geo MVS Upright

I've also recently purchased a Death Smiles Japanese B1 poster for the new games room, so I need to get some frames for these posters now. They're awkward to buy for because Japanese B1 is most definitely not a standard UK size.

All being well, I should be moved into the new place by the end of the month, and have my games room all set up. I'll get some pictures up as soon as it's all together.

Sega 5 Button Loom

After wanting a game on Guilty Gear Isuka but not having a cabinet with the correct setup for it (Ok Baby and Blast City monitors are rotated, Astro City doesn't have a 5 button loom), I decided to remedy that by making myself a 5 button Sega loom. By default these things usually come set up for 3 buttons, sometimes 4. For most games this is enough, the only exception I can think of from the top of my head is the Atomiswave and some of the games on that. Unfortunately Guilty Gear Isuka resides on the Atomiswave. I ordered the connector and pins from  Digi Key, and used some 18 AWG wire and some 2.8mm crimp terminals I had lying around. It's not necessary to use 18 AWG wire, 20 or even 22 would do the job just fine, but the thicker the wire the better generally speaking, and I have plenty of 18 AWG.

Once you have the parts it's a straightforward process. Connect the wires to the connector pins (they crimp but I add a little solder to secure it), push the pins into the connector, then add the crimp terminals (again I add a little solder to hold the wire into the terminal as well as crimp it. The only slightly tricky part is the ground wires. The ground comes from one pin, and has to be daisy chained. The only thing you need to really be sure of is that there is a good connection between the wires on all of the grounds.

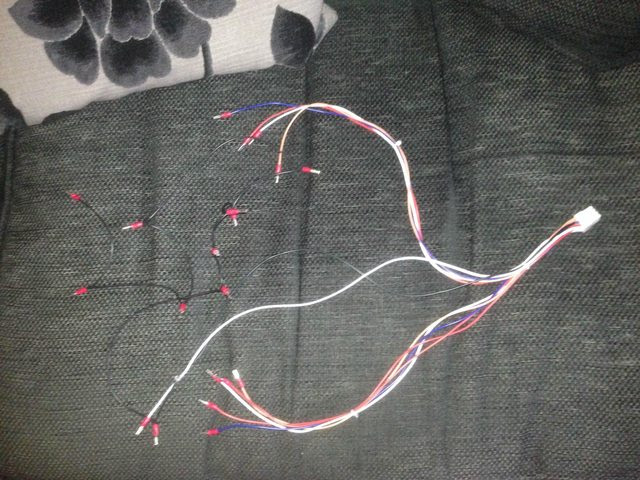

Here's the end product:

If you wish to give this a go yourself, the pinout can be found on the Arcade Otaku wiki here: http://wiki.arcadeotaku.com/w/Sega_Naomi_Universal

DoDonPachi Dai Ou Jou Tamashii

Released in 2010, DoDonPachi Dai Ou Jou Tamashii was brought to the Asian market for the IGS PGM 2. It was released only in China and Taiwan.

I'm not sure what the story is behind this re-release, it seems to be simply a release for the Asian, rather than Japanese market, of the original DoDonPachi Dai Ou Jou, albeit with a couple of differences. The first, and smaller of the two is the sound. While it has the same sound track it is slightly different sounding, presumably because the sound chip is different. The second is the introduction of an easy mode. The difference between easy and normal modes is volume of enemy bullets, as well as the speed they travel. The easy mode also seems to be more generous with hyper power ups.

For those unaware of the original game, it is a bullet hell shooter from Cave, and is the 3rd game game by CAVE in the Donpachi series*. The original game was released on IGS PGM hardware, although not in cartridge form, but on a single PCB.

If you have played the original game, then you will know that it's not an easy game. It is in fact arguably the hardest of all of the Donpachi series. The easy mode is somewhat less difficult, but don't expect to have a few credits then be suddenly able to 1 credit the game, even the easy mode still isn't easy for beginners.

Here's a picture of the PGM2 cart on the motherboard.

*DoDonPachi 2: Bee Storm was developed and released by IGS themselves, under license from CAVE. Most people do not consider this to be part of the main series.
